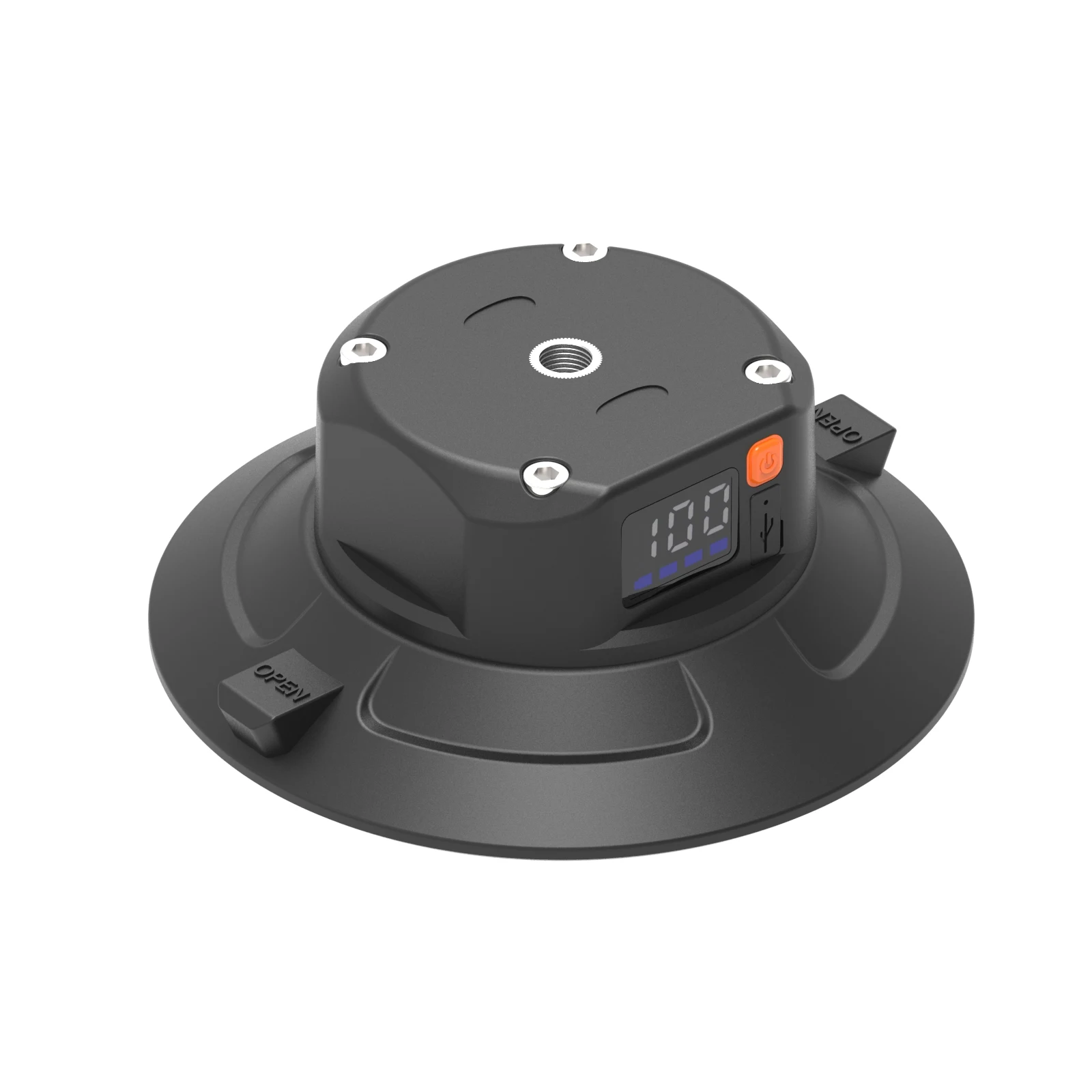

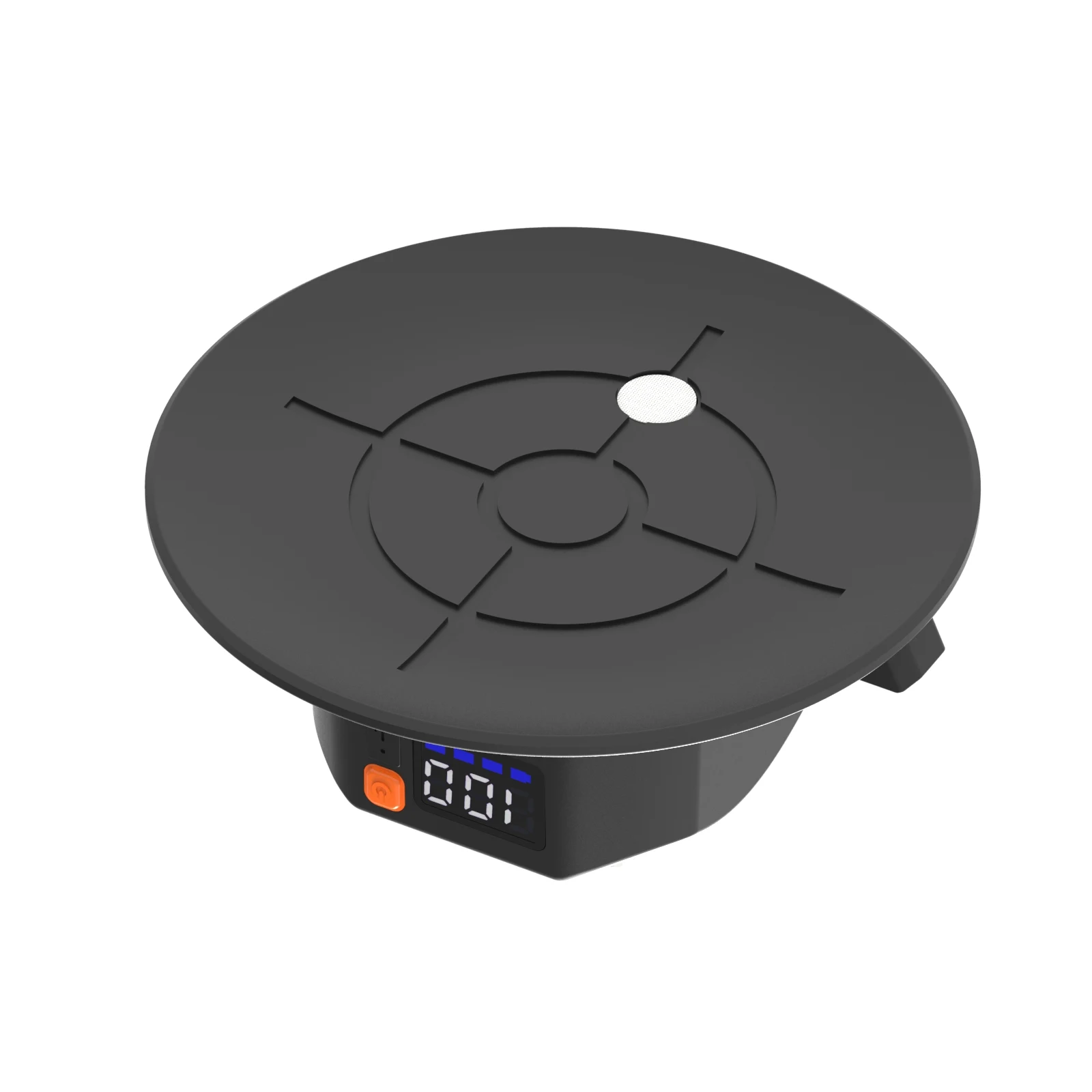

MC600-PN Ultra-Lightweight Smart Suction Cup |
Zero-Mark Technology for High-Value Vehicles |
Patented Auto-Compensation | 198 lbs (90 kg) Max Load

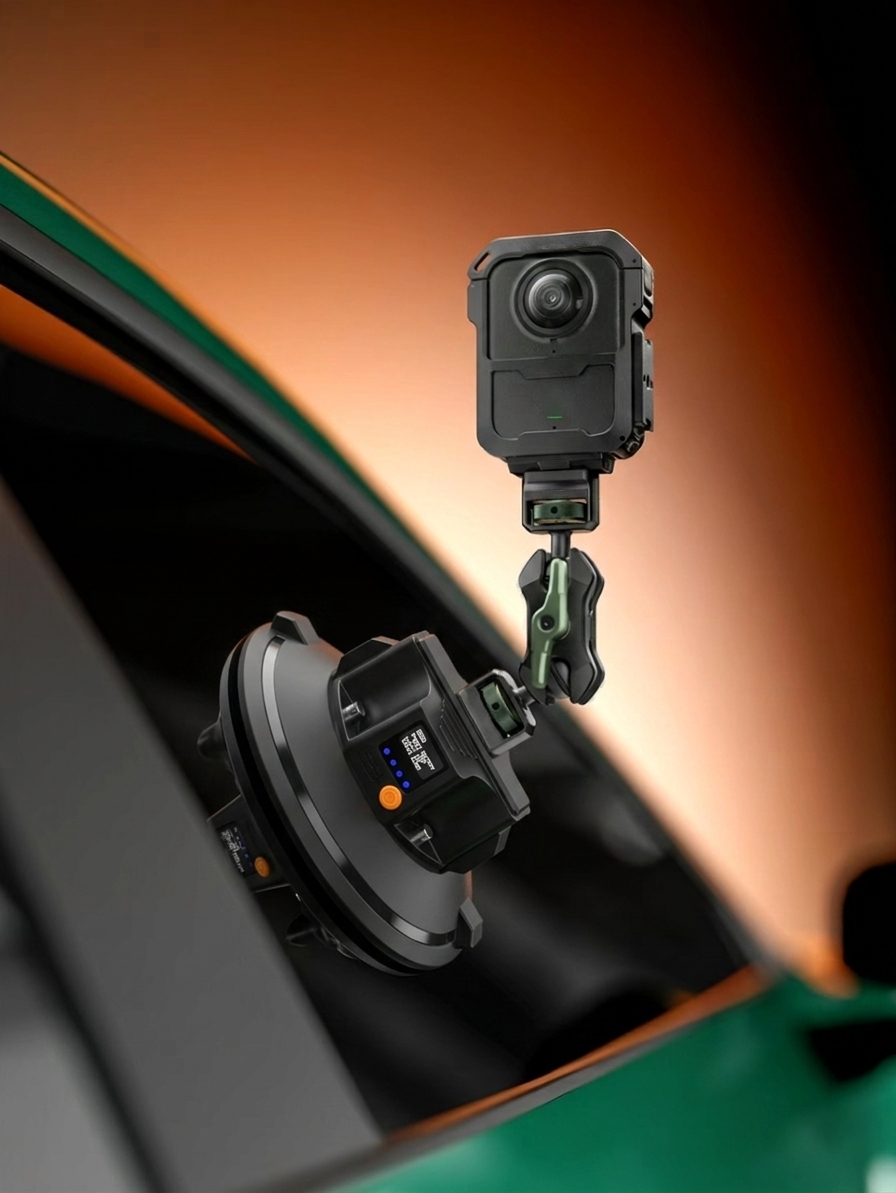

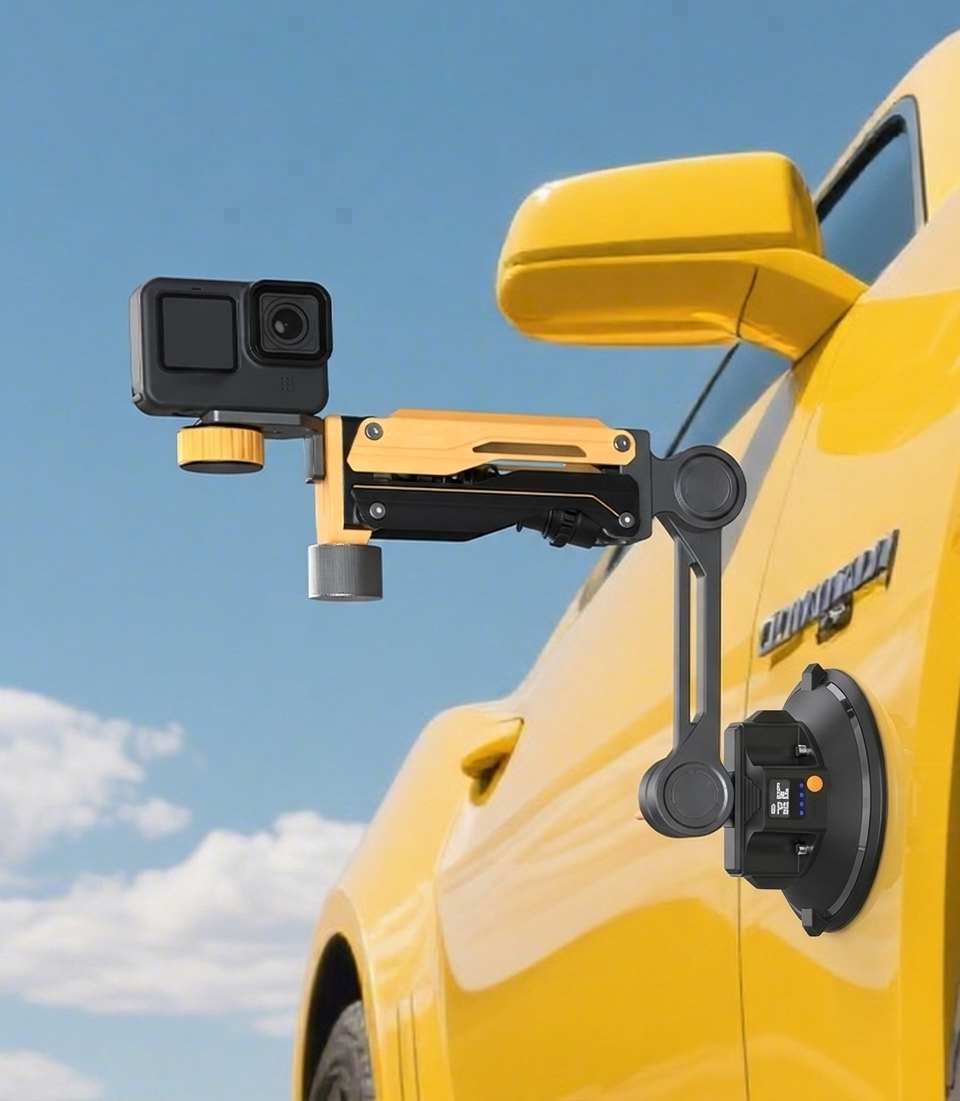

The MC600-PN is an ultralight smart suction cup designed for professional cinema rigging，which combines industrial-grade holding strength, surface-safe design, and intelligent safety systems — ideal for high-value, rented, or vintage vehicles.
Key Advantages:
▶Zero-Mark, Paint-Safe

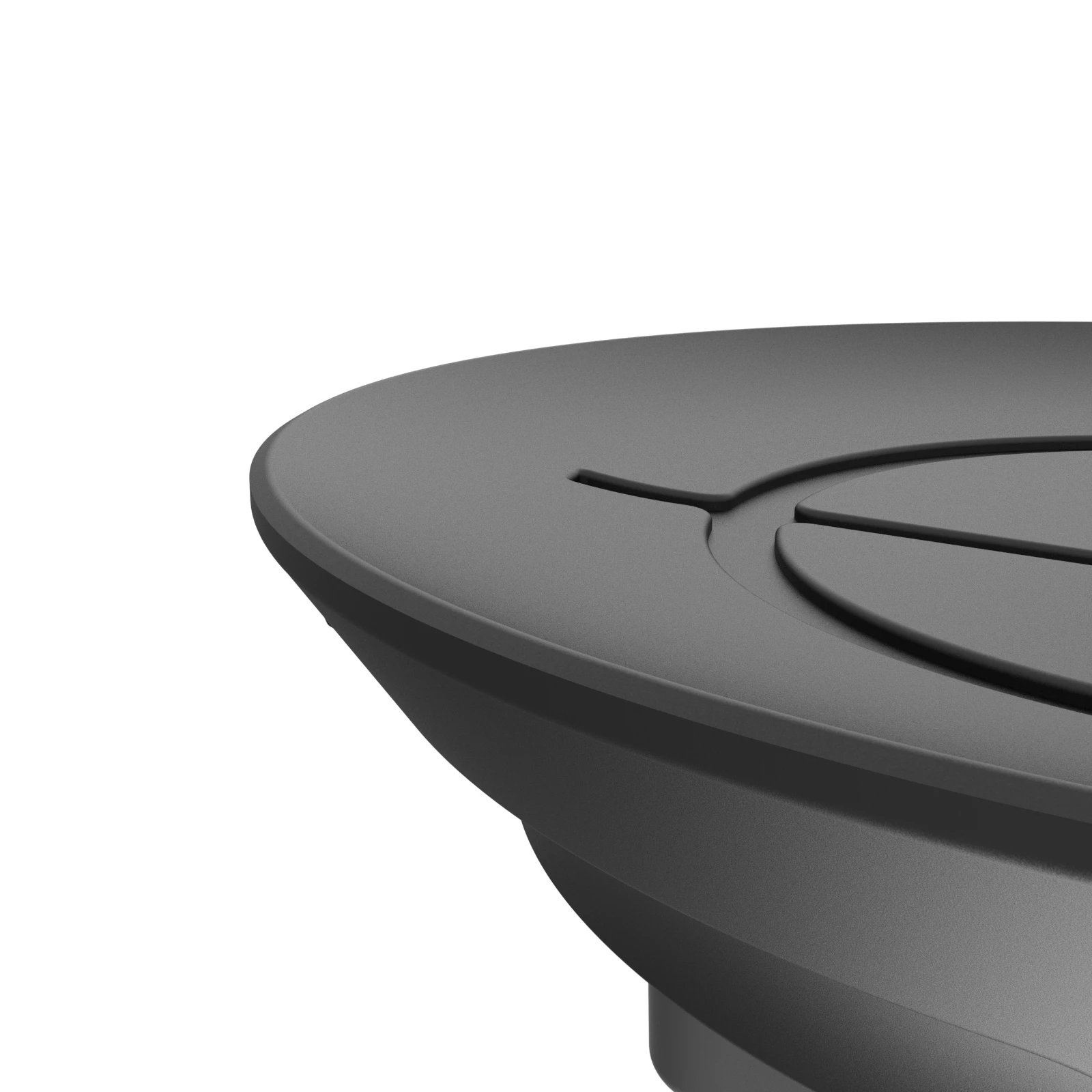

Curvature-optimized silicone interface leaves no stress marks, residue, or damage on clear coats.
▶Ultra-Lightweight
Only 513g, the lightest 6-inch electronic suction cup in its class.
▶Intelligent Auto-Compensation
Patented system monitors pressure 1000 times per second; auto-retains full vacuum.
▶Strong & Stable Load
Vertical safe load 70kg, side load 35kg, max load 90kg for professional cinema gear.
▶IP65 Weatherproof
Dustproof and water-resistant, works reliably from -20°C to 45°C.
▶Easy USB-C Power
5V/1A USB-C compatible with power banks for all-day shooting.
▶Standard Professional Mount

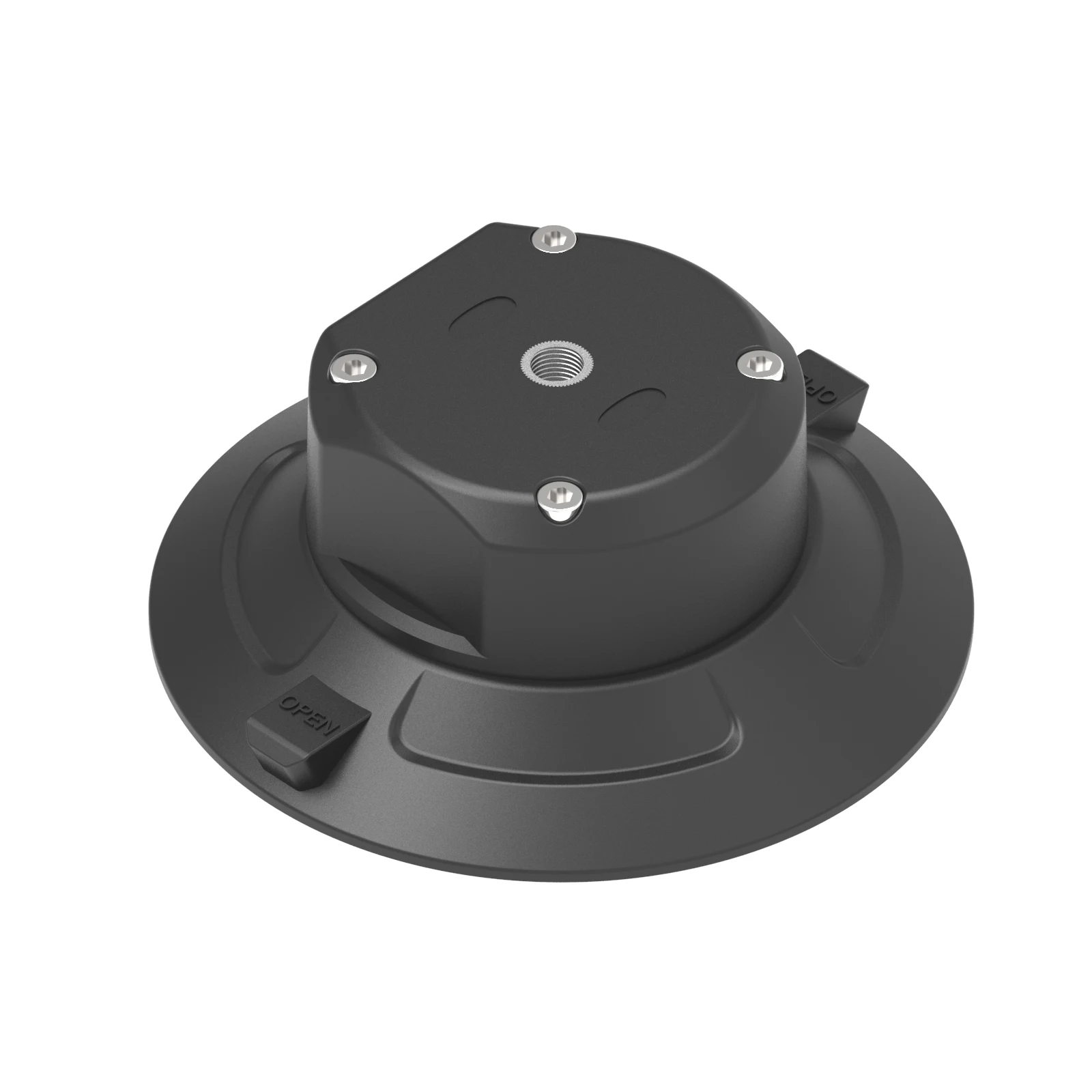

1/4”-20 thread fits most camera and rigging accessories.
▶Certified Safety
CE, FCC, UKCA certified for professional on-set use.
Technical Specifications:
▶Device Weight: 513 g (1.13 lbs)
▶Vertical Safe Load: 70 kg (154 lbs)
▶Side Load Capacity: 35 kg
▶Battery: 1100 mAh (supports USB-C external power)
▶Operating Temperature: -20°C to 45°C (-4°F to 113°F)
▶Safety Certifications: CE, FCC, UKCA
Frequently Asked Questions
★Will this suction cup damage high-value vehicle paint?
No. The MC600-PN uses exclusive Zero-Mark Technology. It eliminates harsh sealing strips and optimizes suction curvature, ensuring no stress marks, residue, or rings are left on vehicle clear coats.
★What if the battery dies during shooting?
Safety is our top priority. The unit features a Dual Alarm Protocol that triggers visual and audio alerts when battery falls below 20%. Since the vacuum seal is mechanical, a dead battery will not cause immediate detachment — only the auto-pump will stop active compensation. For long shoots, we recommend continuous power via the USB-C port.
★Is it difficult for beginners to set up?

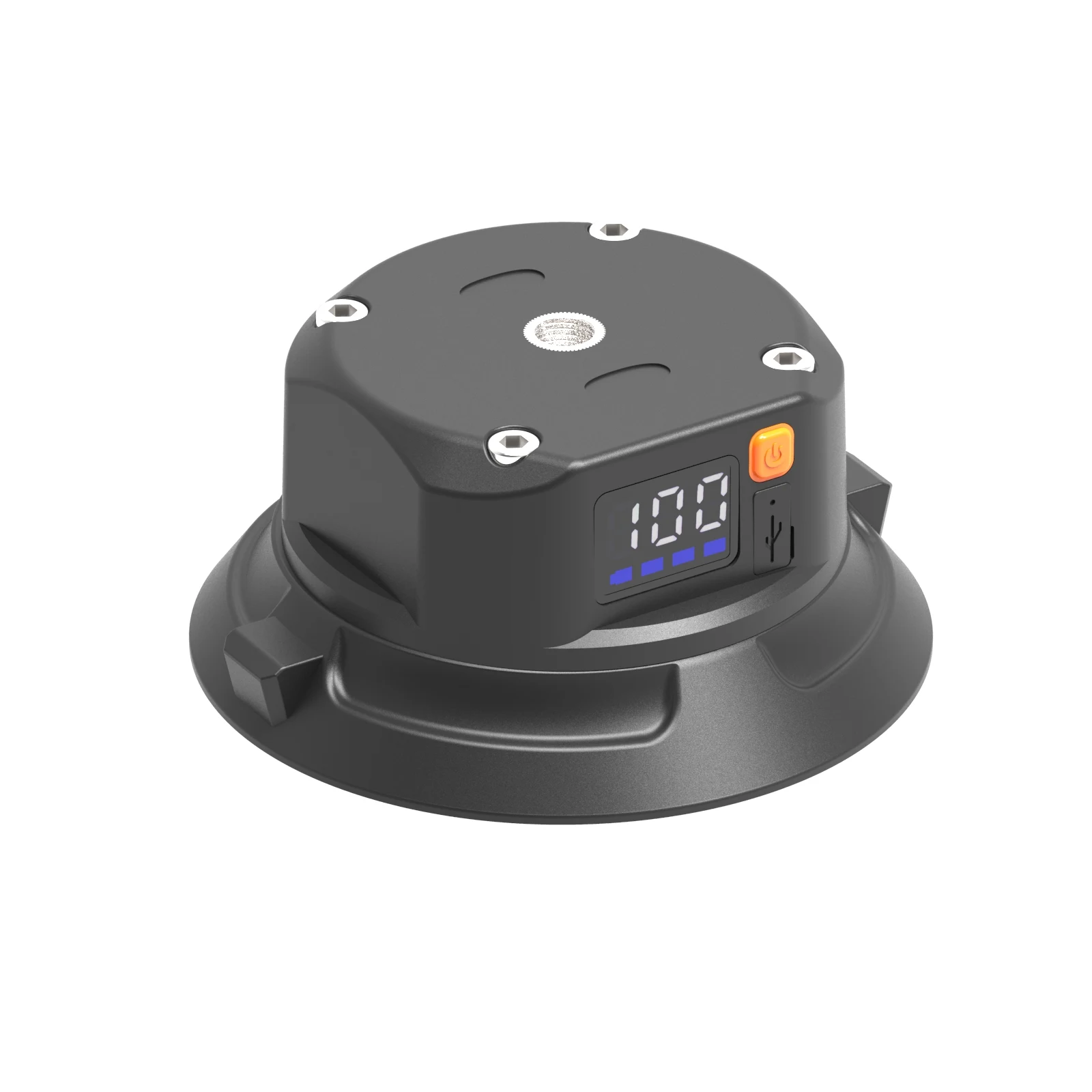

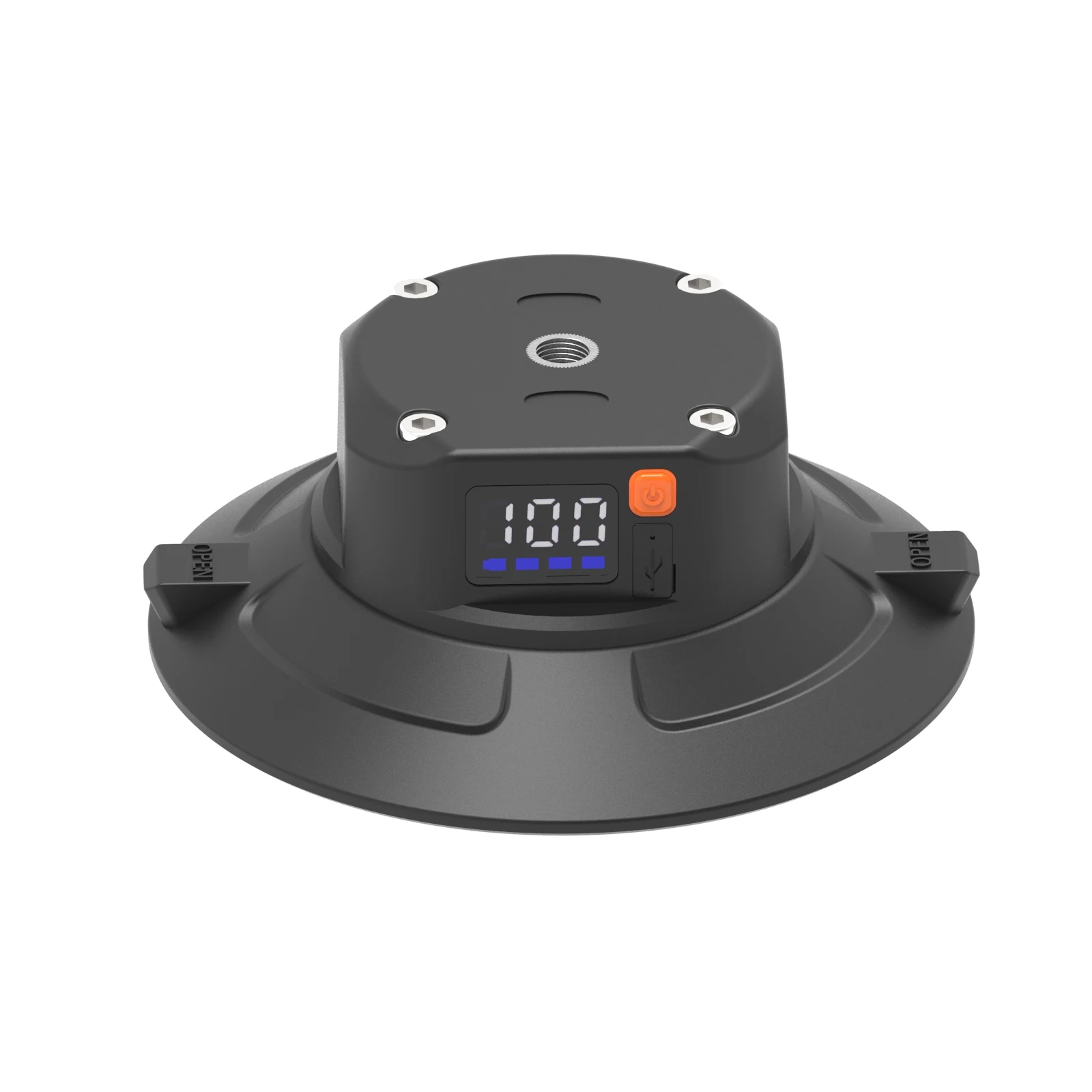

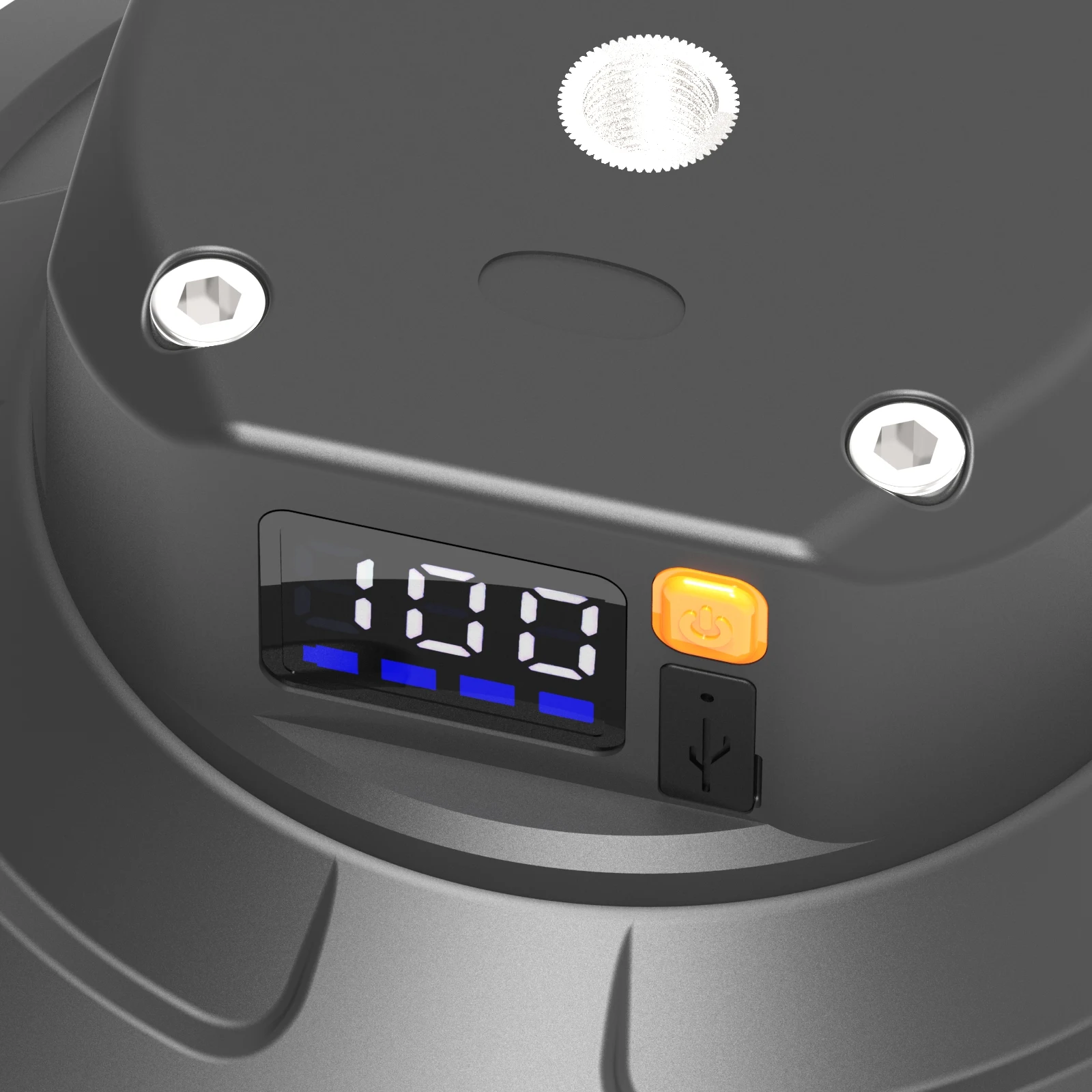

Not at all. The MC600-PN is built with anti-error logic. Just place it on a smooth, non-porous surface and power on. The motor automatically activates and reaches full vacuum in about 5 seconds. The LED display will clearly show “100” when fully secured.
